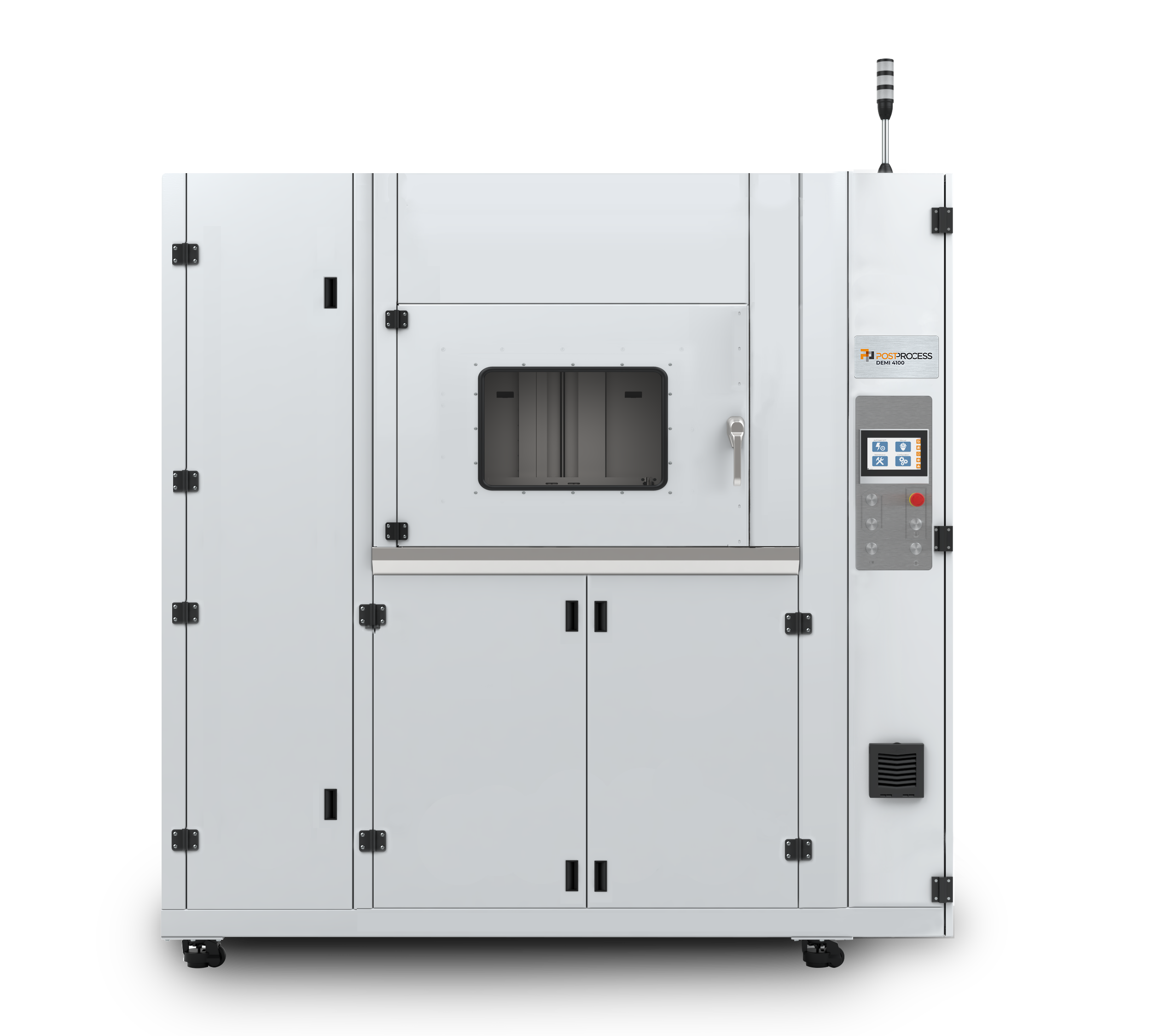

The PostProcess® DEMI 4100, part of our Submersed Vortex Cavitation (SVC) technology portfolio, enhances post-processing efficiencies for large format resin print technologies. This solution integrates advanced software, hardware, and proprietary chemistry to achieve optimal resin cleaning, making it a game-changer in high-volume applications.
Increased productivity
Achieve fast processing speeds to deliver significant labor time savings.
Full software integration
AUTOMAT3D® digital platform allows for full customization, recipe storage and repeatability with one-touch operation.
Enhanced safety
Resin removal chemistry offers an exceedingly safer flashpoint and increased longevity compared to IPA and other solvents.
Increased throughput
DEMI 4100 can seamlessly process large part sizes or large builds with many smaller-sized parts, enabling high volume production.
Repeatable results
With a responsive and intuitive AUTOMAT3D® software, DEMI 4100 achieves reliable and consistent results even with complex parts.
Optimal sustainability
Improves sustainability efforts with 10x reduced waste generation compared to IPA.
Implement an IPA-free resin removal workflow with AUX-400-RINSE as the final rinse step.
**Note: rinse step is to be performed in separate container, not to be used in PostProcess hardware
Consumables Capacity:
265 gallons (998 liters)
Machine Dimensions:
Doors Closed: 89″ L x 51″ W x 89″ H (226 x 130 x 227 cm)
Doors Open: 155″ L x 104″ W x 103″ H (394 x 264 x 261 cm)
System Weight:
Empty: Approx. 2,730 lbs (1,238 kg)
Full: Approx. 5,100 lbs (2,313 kg)
System Warranty:
12 months on-site service and support, as per PostProcess Technologies conditions of sale.
Environmental Requirements:
Temperature Range: 5-40° C (41-104° F)
Software:
AUTOMAT3D, Windows 10
Regulatory Conformity:
CE, SGS
Features & Options:
Customizable settings with recipe storage capability /
Ability to clean parts and trays simultaneously / Up to 10X
longevity over IPA / Flashpoint over 200°F / 93°C
Safety Features:
Emergency stop / Auto power down / Safety interlocked door
Connectivity:
USB Port: USB 3.1
Ethernet: Fully compliant with IEE 802.3, IEEE 802.3u, IEEE 802.3ab
Material Compatibility:
All Vat Photopolymerization resins including rigid, elastomeric, high-temperature and composite filled resins
Printer Compatibility:
Designed for all large format printers including those from Stratasys, 3D Systems, Uniontech, and others.
